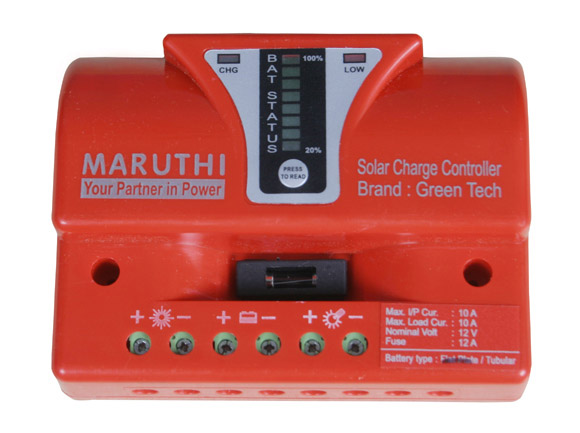

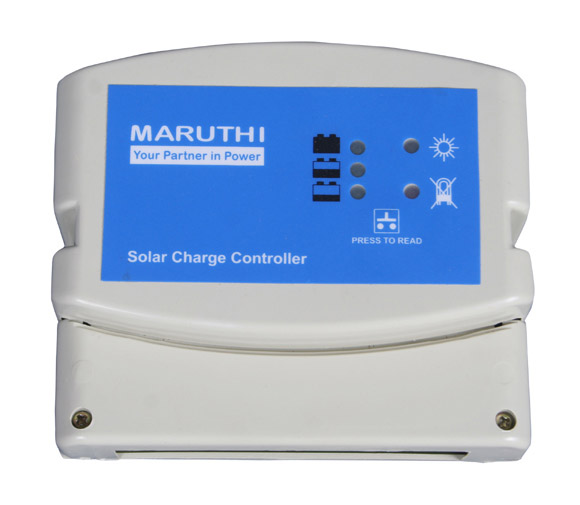

Solar Solution Inc Solar Charge Controller product lines are the best option for compact, stand alone solar systems. This charge controller's centerpiece is a microprocessor which controls a security and information functions as well as guaranteeing optimal charge control. Separate LED's clearly show the battery's charge level. This means the operator can determine the current operating status of their system at any time. With their 3-stage charging process (boost, float, trickle), Maruthi Solar charge controller can also charge flooded lead acid and VRLA batteries. In order to maximize the battery's life further still, the charge controllers also feature integrated temperature compensation. The housing can be installed directly onto a wall.
| Nominal Battery Voltage | 12 / 24V ( Auto Recognition ) |
| Solar Charging | 5/10A (Max) |
| Load Current | 5/10A (Max) |
| Charging T opology | 3 Stage (Boost, Float & T rickle) |
| Array Input Voltage | 30V (Max) for 12V System, 50V (Max) for 24V System |
| Regulator T ype | PWM Series Regulator |
| Mode of Earthing | Common Positive |
| Terminations | Screw T ype Connector Suitable for 4 Sq. mm Cable |
| Self Consumption | < 6 mA (With no LED glowing) |
| Dimension | 100 X 170 X 40 mm ( H X W X D ) |
| Enclosure | T hermoplastic - A BS |
| Storage T emperature | -20 to +65°C |
| Operating T emperature | 0 to +50°C |
| Fixing | Wall Mounting |
| Humidity | 95% RH |
| Battery type | Flooded / VRLA |
| Efficiency | >95% (Typical) |
| Weight | 270 Gram |
| Ingress Protection | IP22 |
| Application | Indoor |
Data subject to change due to continuous improvement.
