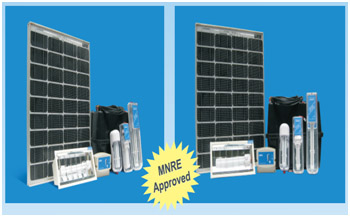

Solar Solution Inc’s Solar home lighting systems are designed to operate as one integrated system. This system includes the power generation, storage and management (solar panels, battery & controller) as well as the light itself, support frame & attractive indoor lights and provision for connecting other loads (radio, tape recorder, portable TV, fan, etc... depending upon the system configuration) as well as a complete set of installation hardware.
The fully integrated system incorporate the latest and most innovative technologies like PWM(Pulse width modulation) and three stage battery charging to enhance the better battery life, providing years of convenient and trouble free lighting. Solar Solution Inc has a wide range of Solar home lights which includes CFL, and LED lamps for different home lighting requirements. The Solar Home system is an excellent solution for household electrification in rural areas.
Houses, Huts and Cottage, Clinics, Schools, Holiday Resorts, Offices, Bank, Other Indoor Applications
Product |
HLS Luminary |
HLS Luminary |
HLS Luminary |
Model |
MSHL07C |
MSHL09C |
MSHL11C |
Electrical Specification |
|||
Nominal working voltage |
12V DC |
||
Working voltage range |
10.5 to 14V DC |
||
Inverter type |
Quasi Sine wave, Free running |
||
Inverter frequency |
20-30 kHz |
||
Inverter efficiency |
> 85% |
||
Crest factor |
< 1.6 |
||
DC component at the output voltage |
Nil |
||
Lamp starting |
Soft start |
||
Preheating time |
3-6 Seconds |
||
Lamp power (Type) @ High frequency |
6.5 W |
8.5 W |
11 W |
Lamp Type |
Compact Fluorescent Lamp, 4 Pin, Single U |
||
Lamp Wattage |
7 W |
9W |
11W |
Rated Light output (Lumens) |
370 ± 5% |
600 ± 5% |
900 ± 5% |
Lamp colour temperature |
4700 Deg K (Cool white) |
||
Light coverage |
> 180 Deg |
||
Rated Lamp life (Average) |
8000 Hrs |
||
Light output degradation after 1000 |
< 10% |
||
ON/OFF (2 min ON & 4 min OFF) |
|||
Current consumption @12VDC Input |
0..65A ± 10% |
0.8 A ± 10% |
1.1 A ± 10% |
Reverse Battery protection |
Provided with Auto reset fuse |
||
Overload protection |
Provided with Auto reset fuse |
||
ON/OFF switch |
Provided Hanging switch with 0.5 mt length cable |
||
Mechanical Specification |
|||
Fixing |
Wall mounting with screws, |
||
CF Lamp in base up configuration |
|||
Connecting wire entry |
1 mm2 wire with fork terminals |
||
Case |
Injection Molded Engineering ABS Plastic |
||
Light Diffuser |
UV stabilized / Non yellowing Acrylic |
||
Reflector |
Highly reflective anodized aluminum |
||
Data subject to change due to continuous improvement.
